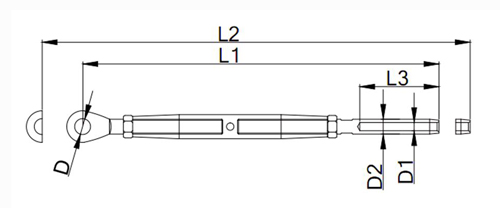

Art. No.

Thread Size

Wire
mm

D
mm

D1
mm

D2
mm

L3
mm

L1
mm

L2
mm

KG/100

B.L.KG.

TS01-0110-0502

M5

2

5.5

2.2

5.5

32

155

215

5.3

800

TS01-0110-0525

M5

2.5

5.5

2.7

5.5

32

155

215

5.3

800

TS01-0110-0603

M6

3

6.5

3.3

6.35

39

175

245

13

1300

TS01-0110-0604

M6

4

6.5

4.3

7.5

45

185

255

13.5

1300

TS01-0110-0804

M8

4

8.5

4.3

7.5

45

200

275

17.5

2350

TS01-0110-0805

M8

5

8.5

5.3

9

52

205

280

18.3

2350

TS01-0110-1005

M10

5

10.5

5.3

9

52

230

320

29

3500

TS01-0110-1006

M10

6

10.5

6.4

12.6

64

245

335

33

3500

TS01-0110-1206

M12

6

13

6.4

12.6

64

280

395

50.5

5400

TS01-0110-1208

M12

8

13

8.4

16

80

300

415

56.5

5400

TS01-0110-1407

M14

7

13

7.4

14.2

70

310

430

69

5600

TS01-0110-1608

M16

8

14.5

8.4

16

80

345

485

100

7600

TS01-0110-1610

M16

10

14.5

10.5

18

90

355

495

104

7600

TS01-0110-2010

M20

10

19.5

10.5

18

90

400

550

146

13000

TS01-0110-2012

M20

12

19.5

12.6

20

105

415

565

148

13000

TS01-0110-2214

M22

14

23

14.7

25

140

527

708

485

17000

TS01-0110-2416

M24

16

26

16.9

28

160

613

846

871

20000

TS01-0110-2719

M27

19

28.5

20

34.5

200

702

934

989

27000

TS01-0110-3022

M30

22

33

23.2

40.5

230

777

1057

1463

31000

TS01-0110-3626

M36

26

36

27.5

46

280

873

1150

1884

43000
